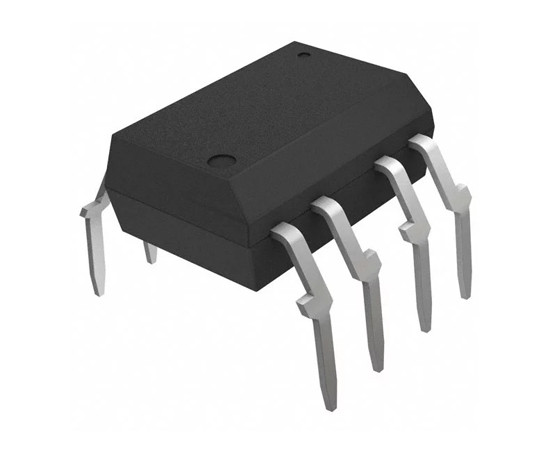

TLP759-D4

Symbol Micros: OOTLP759-d4

127536

OOTLP759-d4

Contractor Symbol:

Case : PDIP08 0,4"

Datasheet

Add to favourites

Photocoupler; Photo-IC Output; 40%; Viso 5000Vrms; Vo 20V; Io 8mA; VDE; -55°C ~ 100°C; Equivalent: TLP759(D4,J,F);

Parameters

Case:	PDIP08 0.4"
CTR:	40%
Insulation breakdown voltage:	5000V
Output type:	Photo IC
Output voltage [V]:	20V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	PDIP08 0.4"
CTR:	40%
Insulation breakdown voltage:	5000V
Output type:	Photo IC
Output voltage [V]:	20V
