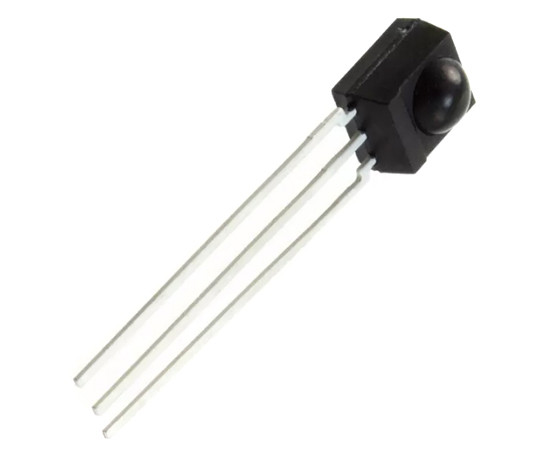

TSOP2238

Symbol Micros: OOTSOP2238

16337

OOTSOP2238

Contractor Symbol:

Case : Rys.TSOP2238

Datasheet

Technical drawing Add to favourites

IR transceiver; frequency: 38kHz; Power: 50mW power supply: -0.3 ~ 6.0 V

Parameters

Manufacturer:	VISHAY
Viewing angle:	45°
Sensing distance:	45m
Carrier frequency:	38kHz
Supply current:	700uA
Supply voltage range:	2,5V~5,5V
Operating temperature (range):	-25°C ~ 85°C

All parameters

Manufacturer:: Vishay Manufacturer part number: TSOP2238 RoHS Case style: Rys.TSOP2238 Datasheet

In stock:

15 pcs.

Quantity of pcs.	2+	5+	20+	90+	360+
Net price (EUR)	0,7467	0,5559	0,4122	0,3486	0,3251

Add to comparison tool Add inquiry (RFQ)

Packaging:
90 Quantity (multiple: 1)

- +

Manufacturer:: Vishay Manufacturer part number: TSOP2238 Case style: Rys.TSOP2238

External warehouse:

90 pcs.

Quantity of pcs.	30+ (Please wait for the order confirmation)
Net price (EUR)	0,3523

Add to comparison tool Add inquiry (RFQ)

Packaging:
30

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Manufacturer:	VISHAY
Viewing angle:	45°
Sensing distance:	45m
Carrier frequency:	38kHz
Supply current:	700uA
Supply voltage range:	2,5V~5,5V
Operating temperature (range):	-25°C ~ 85°C
Mounting:	THT
