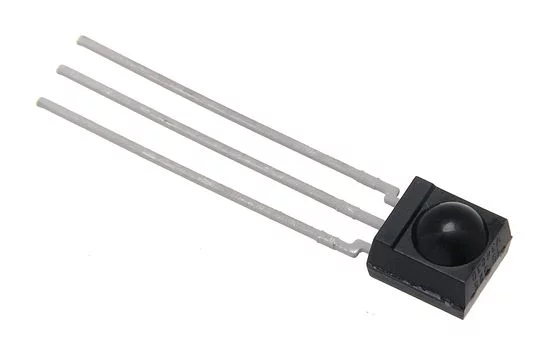

TSOP4838

Symbol Micros: OOTSOP4838

28694

OOTSOP4838

Contractor Symbol:

Case : Rys.TSOP48xx

Datasheet

Technical drawing Add to favourites

IR receiver; frequency: 38kHz; power: 50mW; small-package power supply: -0.3 ~ 6.0 V

Parameters

Manufacturer:	VISHAY
Viewing angle:	45°
Sensing distance:	45m
Carrier frequency:	38kHz
Supply current:	850uA
Supply voltage range:	2,7V~5,5V
Operating temperature (range):	-25°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	VISHAY
Viewing angle:	45°
Sensing distance:	45m
Carrier frequency:	38kHz
Supply current:	850uA
Supply voltage range:	2,7V~5,5V
Operating temperature (range):	-25°C ~ 85°C
Mounting:	THT
