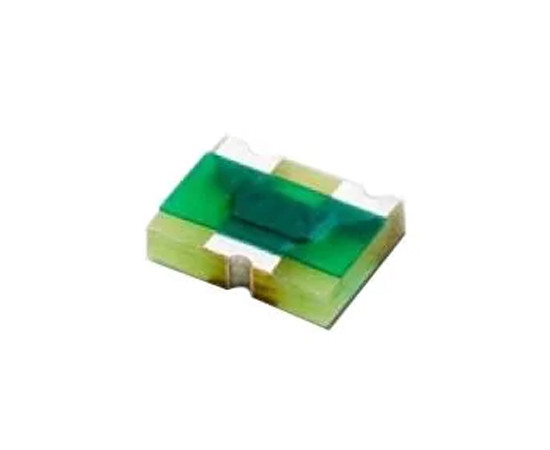

PGB102ST23WR Littelfuse Gas discharge tube

Symbol Micros: OP PGB102ST23WR

358842

OP PGB102ST23WR

Contractor Symbol:

Case : Rys.PGB102ST23WR

Datasheet

Technical drawing Add to favourites

Gas discharge tube; 24V; 150V; 24VDC; SMD; SOT-23-3; dimensions: 3x2.24x0.69mm

Parameters

Operating voltage:	24V
Dimensions:	3x2.24x0.69mm
Manufacturer:	Littelfuse
Operating temperature (range):	-65°C ~ 125°C
Case:	SOT-23
Amount of electrodes:	0
Leads:	N/A

All parameters

Manufacturer:: LITTELFUSE Manufacturer part number: PGB102ST23WR RoHS Case style: Rys.PGB102ST23WR Datasheet

In stock:

100 pcs.

Quantity of pcs.	2+	10+	30+	100+	400+
Net price (EUR)	0,8381	0,5259	0,4367	0,3874	0,3639

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Operating voltage:	24V
Dimensions:	3x2.24x0.69mm
Manufacturer:	Littelfuse
Operating temperature (range):	-65°C ~ 125°C
Case:	SOT-23
Amount of electrodes:	0
Leads:	N/A
Number of leads:	0
Mounting:	SMD
Type:	Anti-Surge
