KCDA03-102

Symbol Micros: OWD.30zagd-SMD

123261

OWD.30zagd-SMD

Contractor Symbol:

Case : Rys.OWD.30pagd-SMD

Datasheet

Technical drawing Add to favourites

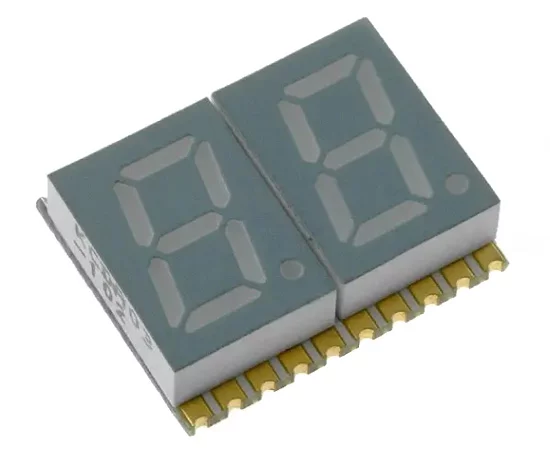

0.30" LED dual digit display; green (568nm); luminosity: 1.2-5.6 mcd; grey background; common anode; IF=20mA; VF=2.2-2.5V

Parameters

Manufacturer:	KingBright
Digit height:	12mm
Number of characters:	2
Backlight colour:	Green
Brightness:	1,2mcd ~ 5,6mcd
Common electrode:	Anode
Dimensions:	14,8x12x3,75mm

All parameters

Manufacturer:: KingBright Manufacturer part number: KCDA03-102 RoHS Case style: Rys.OWD.30pagd-SMD Datasheet

In stock:

160 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,2371	2,7837	2,5193	2,3871	2,3115

Add to comparison tool Add inquiry (RFQ)

Packaging:
300 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	KingBright
Digit height:	12mm
Number of characters:	2
Backlight colour:	Green
Brightness:	1,2mcd ~ 5,6mcd
Common electrode:	Anode
Dimensions:	14,8x12x3,75mm
Forvard volatge [Vgeth]:	2,2V ~ 2,5V
Wavelength (nm):	568nm
Forward current:	20mA
