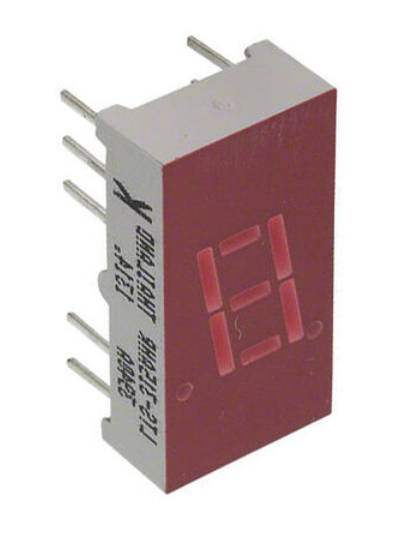

LTS-315AHR LITE-ON

Symbol Micros: OWS.LTS-315AHR

525083

OWS.LTS-315AHR

Contractor Symbol:

Case : Rys.OWS.LTS-315AHR

Datasheet

Technical drawing Add to favourites

1-digit THT LED display; Color: red; Manufacturer: Lite-on; brightness: 0,8-2mcd common cathode; pole pitch: 2,54mm; wavelength: 623-635nm

Parameters

Manufacturer:	Lite-On
Number of characters:	1
Digit height:	7,65mm
Backlight colour:	Red
Brightness:	0,8mcd ~ 2mcd
Common electrode:	Cathode
Pole pitch:	2,54mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Lite-On
Number of characters:	1
Digit height:	7,65mm
Backlight colour:	Red
Brightness:	0,8mcd ~ 2mcd
Common electrode:	Cathode
Pole pitch:	2,54mm
Dimensions:	18,75x9,85mm
Wavelength range:	623nm ~ 635nm
Forward current:	25mA
Forvard volatge range:	2V ~ 2,6V
