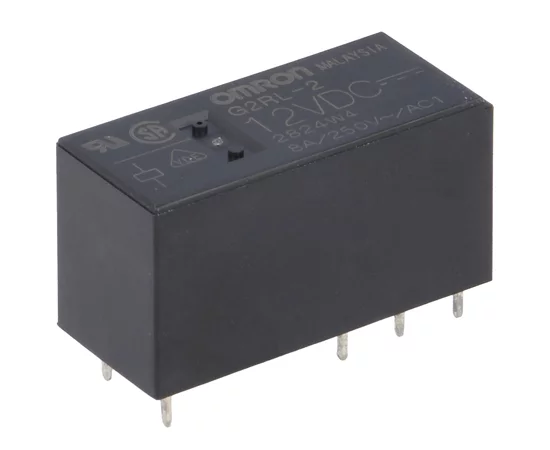

G2RL-2-12VDC miniature relay

Symbol Micros: P G2RL-2-12DC

87678

P G2RL-2-12DC

Contractor Symbol:

Case : Rys.G2RL

Datasheet

Technical drawing Add to favourites

12V; 8A; 400mW; DPDT; 29 x 12.7 x 15.7mm PCB

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	8A
DC contact current:	8A
Contact voltage:	440VAC/300VDC
Coil power:	400mW

All parameters

Manufacturer:: OMRON Manufacturer part number: G2RL-2 DC12 RoHS Case style: Rys.G2RL Datasheet

In stock:

1548 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,5963	2,0602	1,8612	1,7629	1,7301

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: OMRON Manufacturer part number: G2RL-2 12VDC RoHS Case style: Rys.G2RL Datasheet

In stock:

200 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	2,6198	2,1585	1,9830	1,8917	1,8706

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	8A
DC contact current:	8A
Contact voltage:	440VAC/300VDC
Coil power:	400mW
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	29 x 12.7 x 15.7mm
Operating temperature (range):	-40°C ~ 85°C
