30.22.7.012.0010

Symbol Micros: P 30.22.7.012.0010

400509

P 30.22.7.012.0010

Contractor Symbol:

Case : rys.30.22.7.012.0010

Datasheet

Technical drawing Add to favourites

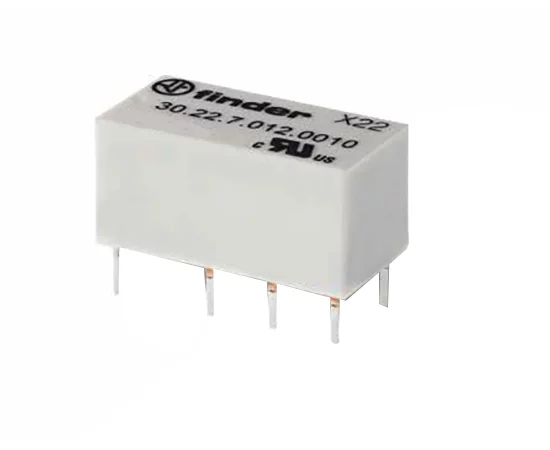

12V DC; 2A; DPDT; 200mW; PCB; 20,3 x 10,1 x 11,4mm; AgNi/Au;

Parameters

Contacts configuration:	DPDT
Coil voltage (V):	12V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	250VAC
Coil power:	200mW
Mounting:	PCB

All parameters

Manufacturer:: FINDER Manufacturer part number: 30.22.7.012.0010 RoHS Case style: Rys.30.22 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	5,0432	4,0355	3,6414	3,4313	3,3842

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage (V):	12V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	250VAC
Coil power:	200mW
Mounting:	PCB
Manufacturer:	FINDER
Dimensions:	20,3x10,1x11,4mm
Operating temperature (range):	-40°C ~ 85°C
