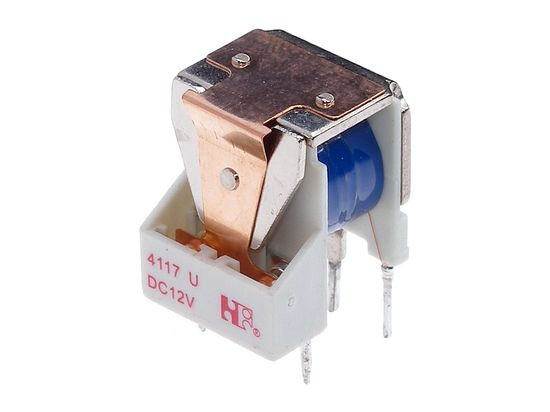

4117UO20  12VDC automotive relay

Symbol Micros: P 4117UO20-12

27303

P 4117UO20-12

Contractor Symbol:

Case : Rys.4117

Datasheet

Technical drawing Add to favourites

20A; 12V; DPST-NO; coil power 1W; 13,2 x 15,3 x 18 mm PCB open type; equivalent: HFKM, AZ975-976, A203-A208/V23072-C, OAR

Parameters

Contacts configuration:	DPST-NO
Coil voltage (V):	12V
Contact current:	20A
Contact voltage:	75VDC/380VAC
Coil resistance:	145Ohm
Coil power:	1W
Mounting:	PCB

All parameters

Manufacturer:: Forward Relays Manufacturer part number: 4117UO2012VDC1.0 RoHS Case style: Rys.4117 Datasheet

In stock:

40 pcs.

Quantity of pcs.	1+	5+	20+	60+	300+
Net price (EUR)	1,0826	0,7178	0,5907	0,5460	0,5154

Add to comparison tool Add inquiry (RFQ)

Packaging:
60 Quantity (multiple: 1)

- +

Manufacturer:: Forward Relays Manufacturer part number: 4117UO20DC12V1.0 RoHS Case style: Rys.4117 Datasheet

In stock:

19 pcs.

Quantity of pcs.	1+	5+	20+	60+	300+
Net price (EUR)	1,0873	0,7202	0,5954	0,5484	0,5178

Add to comparison tool Add inquiry (RFQ)

Packaging:
60 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPST-NO
Coil voltage (V):	12V
Contact current:	20A
Contact voltage:	75VDC/380VAC
Coil resistance:	145Ohm
Coil power:	1W
Mounting:	PCB
Manufacturer:	NFR
Dimensions:	13,2 x 15,3 x 18 mm
Operating temperature (range):	-40°C ~ 105°C
