8-1393215-1 TE Connectivity

Symbol Micros: P 8-1393215-1

200955

P 8-1393215-1

Contractor Symbol:

Case : Rys.8-1393476-0

Datasheet

Technical drawing Add to favourites

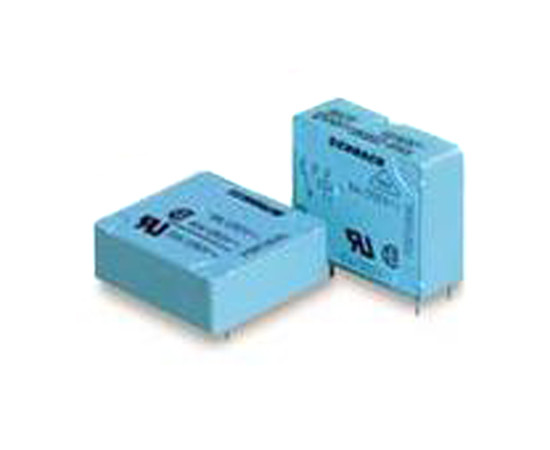

Power Relay 24VDC 8A SPDT(28x10.4x25.1)mm THT V23057B0006A201

Parameters

Contacts configuration:	SPDT
Coil voltage (V):	24V
AC contact current:	8A
DC contact current:	8A
Contact voltage:	400VAC
Mounting:	THT
Manufacturer:	TE Connectivity

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPDT
Coil voltage (V):	24V
AC contact current:	8A
DC contact current:	8A
Contact voltage:	400VAC
Mounting:	THT
Manufacturer:	TE Connectivity
Dimensions:	28x10,4x25,1mm
Operating temperature (range):	-40°C ~ 70°C
