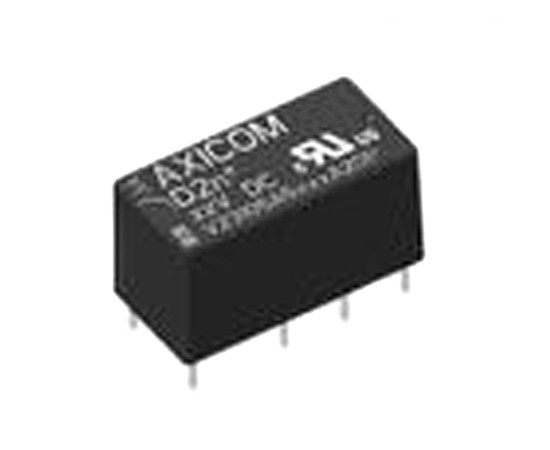

8-1393792-5 miniature relay

Symbol Micros: P 8-1393792-5

71167

P 8-1393792-5

Contractor Symbol:

Case : Rys. 8-1393792-5

Datasheet

Add to favourites

3A; 5VDC; 150mW; DPDT; 20,3 x 10,1 x 10,43mm PCB ; V23105A5001A201 ; D2N05-167

Parameters

Contacts configuration:	DPDT
Coil voltage (V):	5V
AC contact current:	3A
DC contact current:	3A
Contact voltage:	250VAC/220VDC
Mounting:	PCB
Manufacturer:	TE Connectivity

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	DPDT
Coil voltage (V):	5V
AC contact current:	3A
DC contact current:	3A
Contact voltage:	250VAC/220VDC
Mounting:	PCB
Manufacturer:	TE Connectivity
Dimensions:	20,3x10,1x10,43mm
Operating temperature (range):	-40°C ~ 85°C
