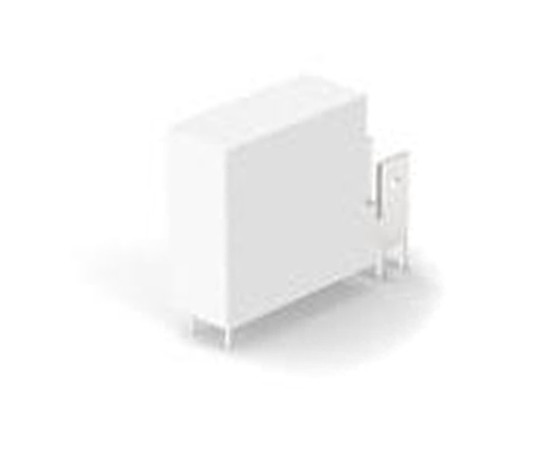

8-1415536-7 TE Connectivity power relay

Symbol Micros: P 8-1415536-7

200962

P 8-1415536-7

Contractor Symbol:

Case : Rys.8-1393476-0

Datasheet

Add to favourites

12V DC; 16A; SPST-NO-DM (40.5x12.5x28.5)mm THT

Parameters

Contacts configuration:	SPST-NO
Coil voltage (V):	12V
AC contact current:	16A
DC contact current:	16A
Contact voltage:	400VAC
Coil power:	360mW
Mounting:	PCB

All parameters

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-1415536-7 RoHS Case style: Rys.8-1393476-0 Datasheet

In stock:

14 pcs.

Quantity of pcs.	1+	5+	20+	40+	100+
Net price (EUR)	7,5101	6,0265	5,4345	5,2623	5,1090

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 8-1415536-7 RoHS Case style: Rys.8-1393476-0 Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	5+	20+	40+	100+
Net price (EUR)	7,5101	6,0265	5,4345	5,2623	5,1090

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPST-NO
Coil voltage (V):	12V
AC contact current:	16A
DC contact current:	16A
Contact voltage:	400VAC
Coil power:	360mW
Mounting:	PCB
Manufacturer:	TE Connectivity
Dimensions:	40.5x12.5x28.5mm
Operating temperature (range):	-25°C ~ 85°C
