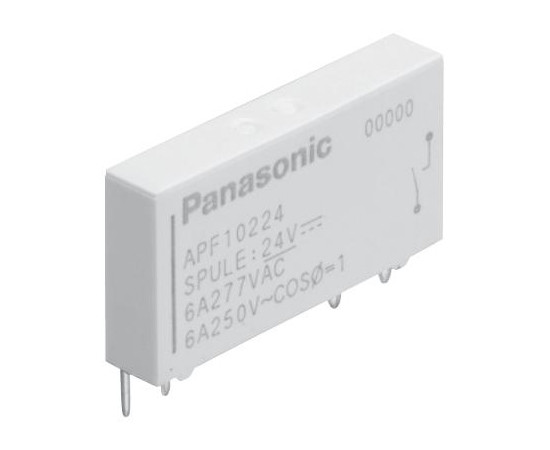

APF10224 Panasonic

Symbol Micros: P APF10224

125724

P APF10224

Contractor Symbol:

Case : APF Panasonic

Datasheet

Technical drawing Add to favourites

SPST-NO; 24V DC; 6A; 170mW; 28 x 5 x 15mm PCB

Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	6A
DC contact current:	6A
Contact voltage:	250VAC
Coil power:	170mW

All parameters

Manufacturer:: Panasonic Manufacturer part number: APF10224 Case style: APF Panasonic

External warehouse:

130 pcs.

Quantity of pcs.	10+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,0168

Add inquiry (RFQ)

Packaging:
10

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Panasonic Manufacturer part number: APF10224 Case style: APF Panasonic

External warehouse:

1560 pcs.

Quantity of pcs.	80+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,5284

Add to comparison tool Add inquiry (RFQ)

Packaging:
20

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	6A
DC contact current:	6A
Contact voltage:	250VAC
Coil power:	170mW
Mounting:	PCB
Manufacturer:	PANASONIC
Dimensions:	28 x 5 x 15mm
Operating temperature (range):	-40°C ~ 85°C
