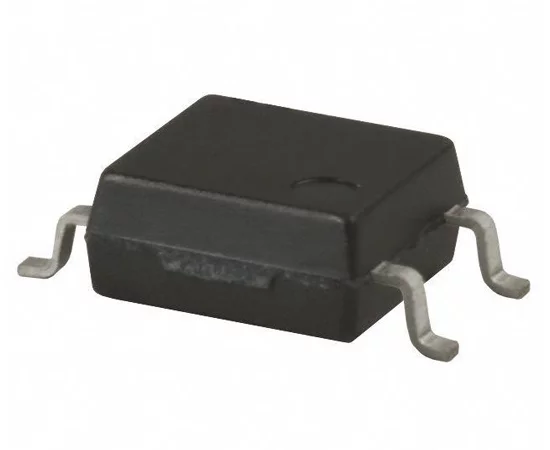

AQY212SX PhotoMOS Solid State Relay

Symbol Micros: P AQY212SX

111600

P AQY212SX

Contractor Symbol:

Case : SOP08

Datasheet

Technical drawing Add to favourites

60V; 50mA; SPST; 4,4 x 4,3 x 2,1mm PCB

Parameters

Contacts configuration:	SPST
Coil voltage type [AC, DC]:	AC/DC
Coil voltage (V):	60V
Mounting:	PCB
Manufacturer:	PANASONIC
Dimensions:	4,4 x 4,3 x 2,1mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPST
Coil voltage type [AC, DC]:	AC/DC
Coil voltage (V):	60V
Mounting:	PCB
Manufacturer:	PANASONIC
Dimensions:	4,4 x 4,3 x 2,1mm
