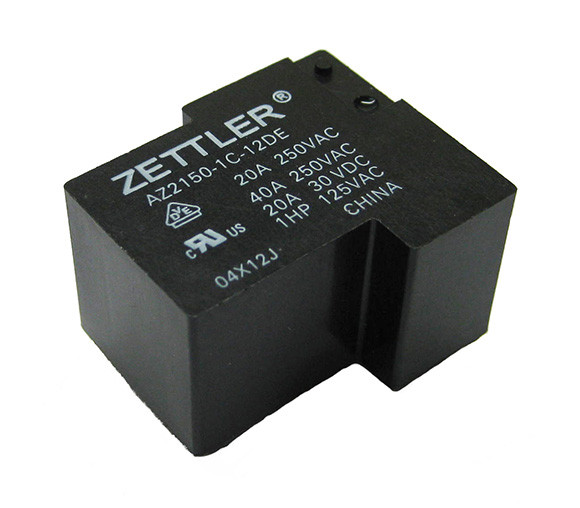

AZ2150-1C-12DE miniature power relay

Symbol Micros: P AZ2150p012de

95062

P AZ2150p012de

Contractor Symbol:

Case : Rys.AZ2150

Datasheet

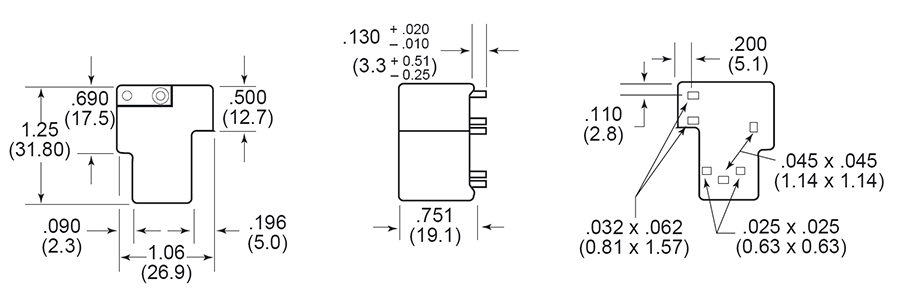

Technical drawing Add to favourites

30A; 12V; SPDT; coil power 500mW; 31,8 x 26,9 x 19,1mm SMT; sealed

Parameters

Type:	SPDT
Coil current type:	DC
Coil voltage (V):	12V
Contact current:	30A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type:	SPDT
Coil current type:	DC
Coil voltage (V):	12V
Contact current:	30A
