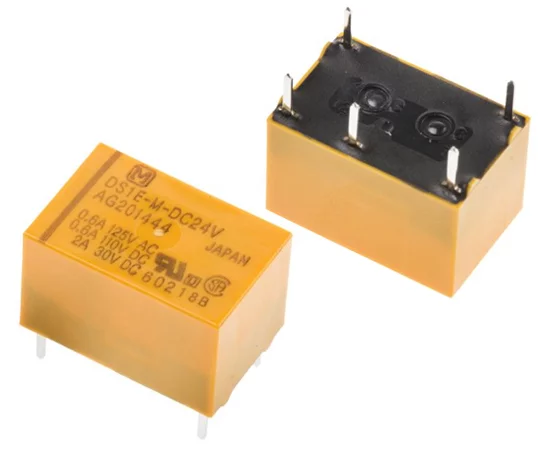

DS1EM24J Panasonic

Symbol Micros: P DS1EM24J

125727

P DS1EM24J

Contractor Symbol:

Case : DS1 Panasonic

Datasheet

Add to favourites

SPDT; 24V DC; 3A; 400mW; 15 x 9,9 x 9,9mm PCB

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	3A
DC contact current:	3A
Contact voltage:	250VAC/220VDC
Coil power:	400mW

All parameters

Manufacturer:: Panasonic Manufacturer part number: DS1EM24J Case style: DS1 Panasonic

External warehouse:

1000 pcs.

Quantity of pcs.	50+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,6732

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Panasonic Manufacturer part number: DS1EM24J Case style: DS1 Panasonic

External warehouse:

4381 pcs.

Quantity of pcs.	100+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,6199

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	3A
DC contact current:	3A
Contact voltage:	250VAC/220VDC
Coil power:	400mW
Mounting:	PCB
Manufacturer:	PANASONIC
Dimensions:	15 x 9,9 x 9,9mm
Operating temperature (range):	-40°C ~ 70°C
