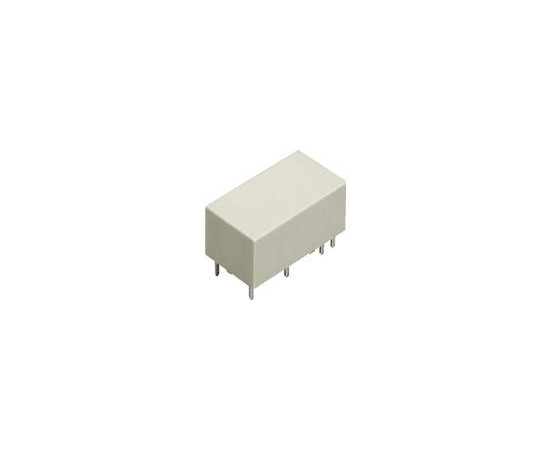

DSP124FD Panasonic

Symbol Micros: P DSP124FD

125732

P DSP124FD

Contractor Symbol:

Case : DSP Panasonic

Datasheet

Add to favourites

SPST-NO/SPST-NC; 24V DC; 5A; 300mW; 20 x 11 x 10mm PCB

Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	250VAC/125VDC
Coil power:	300mW

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	250VAC/125VDC
Coil power:	300mW
Mounting:	PCB
Manufacturer:	PANASONIC
Dimensions:	20 x 11 x 10mm
Operating temperature (range):	-40°C ~ 60°C
