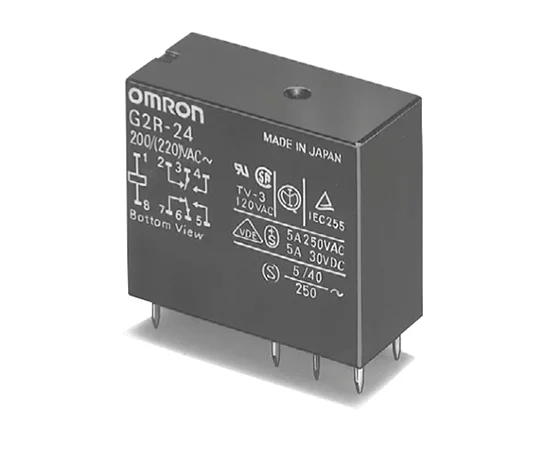

G2R-24-12DC power relay

Symbol Micros: P G2R-24-12DC

120310

P G2R-24-12DC

Contractor Symbol:

Case : Rys.G2R

Datasheet

Technical drawing Add to favourites

12V; 5A; 530mW; DPDT; 29 x 13 x 25,5mm; fully sealed PCB

Parameters

AC contact current:	5A
Coil power:	530mW
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	DPDT
Contact voltage:	380VAC/125VDC
DC contact current:	5A

All parameters

Manufacturer:: OMRON Manufacturer part number: G2R2412DC Case style: Rys.G2R

External warehouse:

320 pcs.

Quantity of pcs.	100+ (Please wait for the order confirmation)
Net price (EUR)	1,4948

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

AC contact current:	5A
Coil power:	530mW
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	DPDT
Contact voltage:	380VAC/125VDC
DC contact current:	5A
Dimensions:	29 x 13 x 25,5mm
Manufacturer:	OMRON
Mounting:	PCB
Operating temperature (range):	-40°C ~ 70°C
