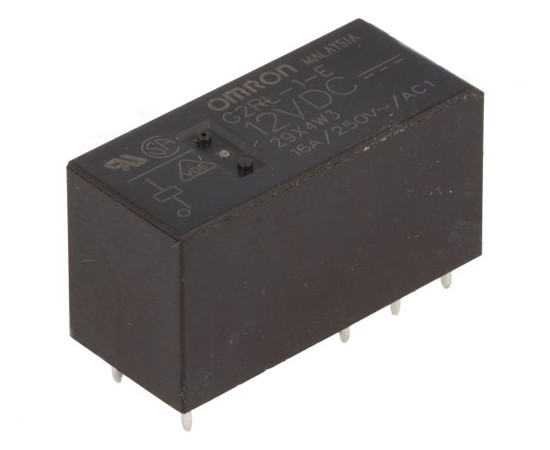

G2RL-1A-12DC power relay

Symbol Micros: P G2RL-1A-12DC

127792

P G2RL-1A-12DC

Contractor Symbol:

Case : Rys.G2RL

Datasheet

Technical drawing Add to favourites

12V; 12A; SPST-NO; 400mW; 29 x 12,5 x 15,7mm PCB

Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	12A
DC contact current:	12A
Contact voltage:	440VAC/300VDC
Coil power:	400mW

All parameters

Manufacturer:: OMRON Manufacturer part number: G2RL1A12DC Case style: Rys.G2RL

External warehouse:

20 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,8585

Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	12A
DC contact current:	12A
Contact voltage:	440VAC/300VDC
Coil power:	400mW
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	29 x 12,5 x 15,7mm
Operating temperature (range):	-40°C ~ 85°C
