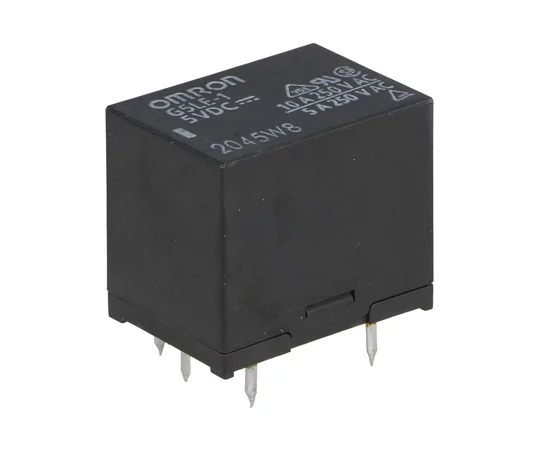

G5LE-14 5VDC

Symbol Micros: P G5LE-14 5VDC

504112

P G5LE-14 5VDC

Contractor Symbol:

Case : Rys.G5LE

Datasheet

Technical drawing Add to favourites

5V DC; 10A; 400mW; SPDT; 22.5x16.5x19mm PCB

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
DC contact current:	10A
Contact voltage:	max. 125V DC, max. 250V AC
Coil power:	400mW
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
DC contact current:	10A
Contact voltage:	max. 125V DC, max. 250V AC
Coil power:	400mW
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	22.5x16.5x19mm
