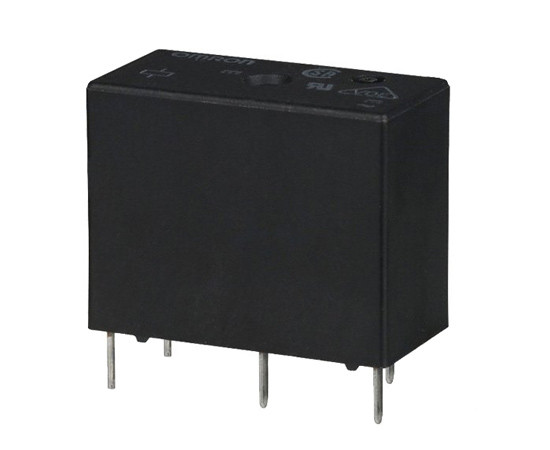

G5Q-14 12DC miniature power relay

Symbol Micros: P G5Q-14-12

118971

P G5Q-14-12

Contractor Symbol:

Case : Rys.G5Q

Datasheet

Technical drawing Add to favourites

12V; 10A; 400mW; SPDT; 22,5 x 16,5 x 19mm; sealed PCB

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	10A
DC contact current:	5A
Contact voltage:	277VAC/30VDC
Mounting:	PCB

All parameters

Manufacturer:: OMRON Manufacturer part number: G5Q-14 12DC RoHS Case style: Rys.G5Q Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,6236	1,1375	0,9652	0,8826	0,8543

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: OMRON Manufacturer part number: G5Q-14 12DC RoHS Case style: Rys.G5Q Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,6236	1,1375	0,9652	0,8826	0,8543

Add to comparison tool Add inquiry (RFQ)

Packaging:
40/100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	10A
DC contact current:	5A
Contact voltage:	277VAC/30VDC
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	22,5 x 16,5 x 19mm
Operating temperature (range):	-40°C ~ 85°C
