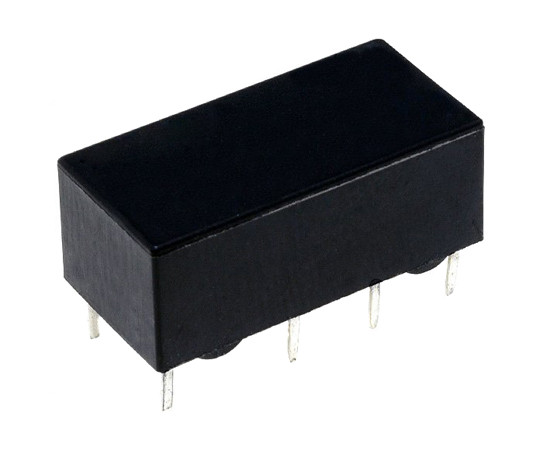

G6A-274P-ST-US 24 signal relay

Symbol Micros: P G6A-274P-ST-US 24

115752

P G6A-274P-ST-US 24

Contractor Symbol:

Case : Rys.G6A

Datasheet

Add to favourites

24V; 2A; 200mW; DPDT; 20,2 x 10,1 x 8,4mm PCB

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Mounting:	PCB

All parameters

Manufacturer:: OMRON Manufacturer part number: G6A-274P-ST-US-24 RoHS Case style: Rys.G6A Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	5+	25+	100+	300+
Net price (EUR)	2,3427	1,8585	1,6625	1,5893	1,5610

Add to comparison tool Add inquiry (RFQ)

Packaging:
25 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	20,2 x 10,1 x 8,4mm
Operating temperature (range):	-40°C ~ 70°C
