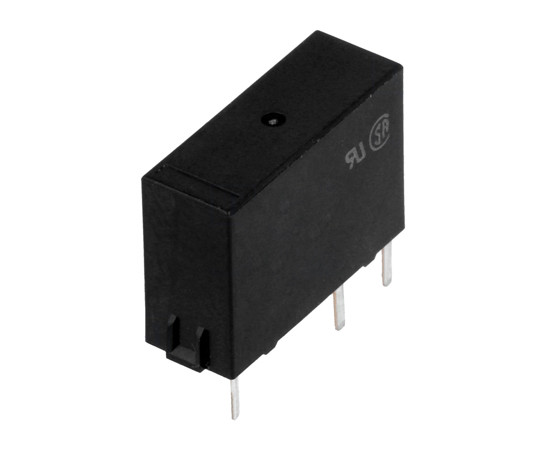

G6D-1A-ASI-12DC power relay

Symbol Micros: P G6D-1A-ASI-12DC

111415

P G6D-1A-ASI-12DC

Contractor Symbol:

Case : Rys.G6D

Datasheet

Technical drawing Add to favourites

5A; 12VDC; SPST-NO; 200mW; 17,5 x 6,5 x 12,5mm PCB

Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	max. 30V DC, max. 250V AC

All parameters

Manufacturer:: OMRON Manufacturer part number: G6D-1A-ASI-12VDC RoHS Case style: Rys.G6D Datasheet

In stock:

38 pcs.

Quantity of pcs.	1+	5+	25+	100+	300+
Net price (EUR)	2,4297	1,9297	1,7255	1,6504	1,6198

Add to comparison tool Add inquiry (RFQ)

Packaging:
25 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	max. 30V DC, max. 250V AC
