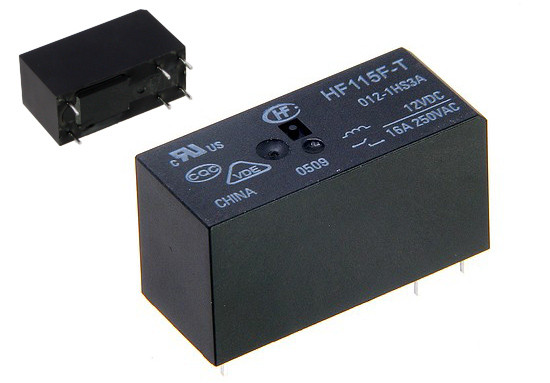

HF115F-T/012-1HS3A power relay  105stC

Symbol Micros: P HF115Ft012-1hs3

38146

P HF115Ft012-1hs3

Contractor Symbol:

Case : Rys.HF115FT.h3

Datasheet

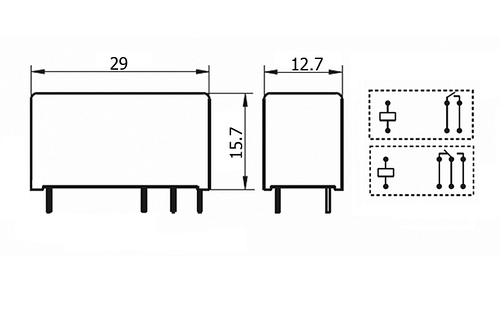

Technical drawing Add to favourites

16A; 12V; SPST-NO; coil power 400mW; 29,0 x 15,7 x 12,7mm PCB

Parameters

Coil voltage (V):	12V
Contact current:	16A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	5000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	12V
Contact current:	16A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	5000V
