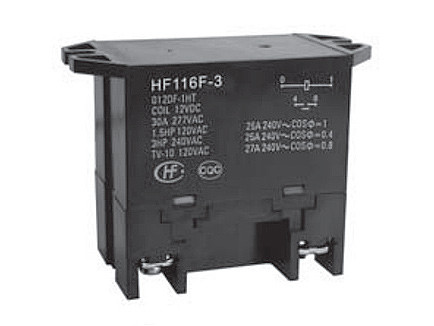

HF116F-3/012DF-1H power relay

Symbol Micros: P HF116F3/012df1h

55872

P HF116F3/012df1h

Contractor Symbol:

Case : Rys.HF116F3

Datasheet

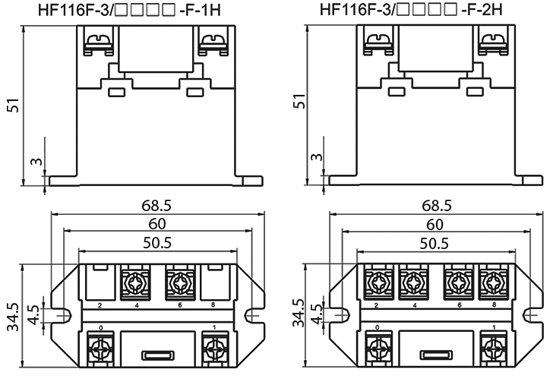

Technical drawing Add to favourites

30A; 12V; SPST-NO; coil power 1,9W; 68,5 x 51,0 x 34,5mm QC

Parameters

Coil voltage (V):	12V
Contact current:	30A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	4000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	12V
Contact current:	30A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	4000V
