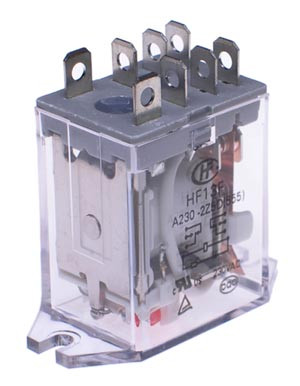

HF13F/A230-2Z5D (JQX-13F) power relay

Symbol Micros: P HF13fa230-2z5d

25529

P HF13fa230-2z5d

Contractor Symbol:

Case : Rys.HF13F

Datasheet

Technical drawing Add to favourites

10A; 230VAC; DPDT; coil power 1.6VA 28,0 x 21,5 x 35,0mm PCB, Plug-in; equivalent: AZ146

Parameters

Coil voltage (V):	230V
Contact current:	10A
Type:	DPDT
Coil current type:	AC
Insulation breakdown voltage:	1500V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	230V
Contact current:	10A
Type:	DPDT
Coil current type:	AC
Insulation breakdown voltage:	1500V
