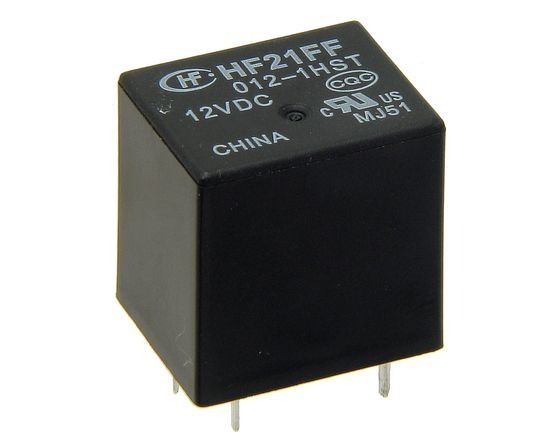

HF21FF/012-1HST  power relay

Symbol Micros: P HF21ff012-1hst

35901

P HF21ff012-1hst

Contractor Symbol:

Case : Rys.HF21FF.1hs

Datasheet

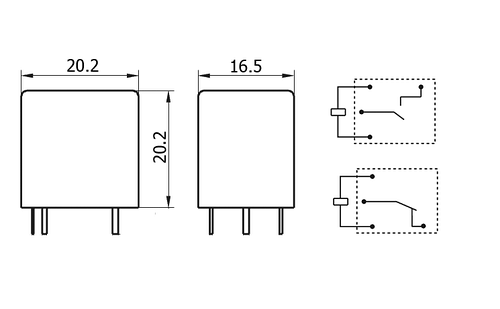

Technical drawing Add to favourites

15A; 12V; 1 st. SPST-NO; coil power 360mW; 20,2 x 16,5 x 20,2mm PCB

Parameters

Coil voltage (V):	12V
Contact current:	15A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	1500V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	12V
Contact current:	15A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	1500V
