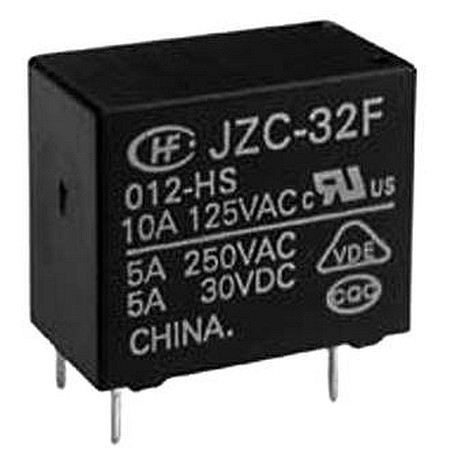

HF32F/012-HLQ3 power relay

Symbol Micros: P HF32f012-hlq3

39710

P HF32f012-hlq3

Contractor Symbol:

Case : Rys.HF32F-hlq3

Datasheet

Technical drawing Add to favourites

8A; 12V; SPST-NO; coil power 200mW; 18,4 x 10,2 x 15,3mm PCB

Parameters

Coil current type:	DC
Coil voltage (V):	12V
Contact current:	8A
Insulation breakdown voltage:	2500V
Type:	SPST-NO

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil current type:	DC
Coil voltage (V):	12V
Contact current:	8A
Insulation breakdown voltage:	2500V
Type:	SPST-NO
