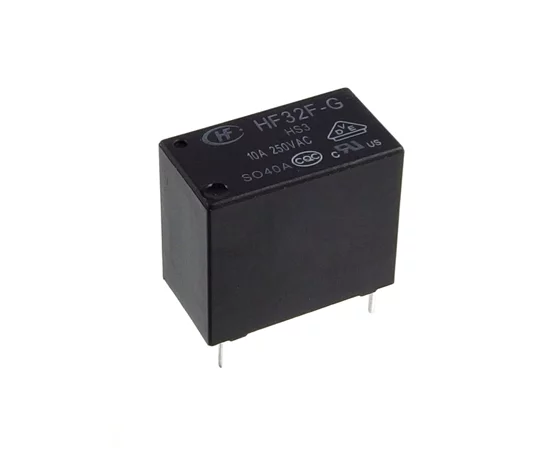

HF32F-G/24-HS3 power relay

Symbol Micros: P HF32fg024-hs3

85539

P HF32fg024-hs3

Contractor Symbol:

Case : Rys.HF32FG

Datasheet

Technical drawing Add to favourites

10A; 24V; SPST-NO; coil power 450mW; 18,4 x 10,2 x 15,3mm PCB; contact material AgNi

Parameters

Coil voltage (V):	24V
Contact current:	10A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	2500V

All parameters

Manufacturer:: Hongfa Manufacturer part number: HF32F-G/024-HS3 RoHS Case style: Rys.HF32FG Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,9794	0,6513	0,5389	0,4850	0,4663

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/500/1000 Quantity (multiple: 1)

- +

• Parameters

Coil voltage (V):	24V
Contact current:	10A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	2500V
