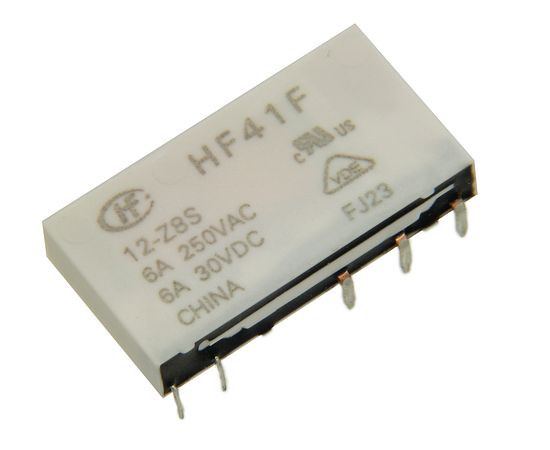

HF41F/012-Z8S subminiature power relay

Symbol Micros: P HF41f012-z8s

35895

P HF41f012-z8s

Contractor Symbol:

Case : Rys.HF41F.1z8

Datasheet

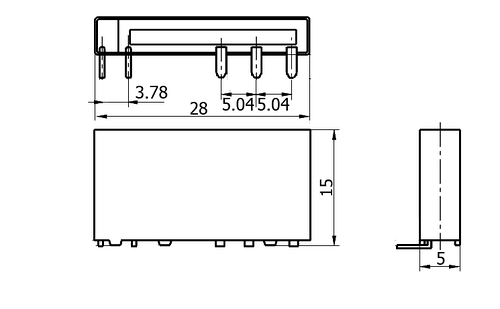

Technical drawing Add to favourites

6A; 12V; SPDT; coil power 170mW; 28,0 x 5,0 x 15,0mm PCB horizontal; contact material AgNi

Parameters

Coil voltage (V):	12V
Contact current:	6A
Type:	SPDT
Coil current type:	DC
Insulation breakdown voltage:	4000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	12V
Contact current:	6A
Type:	SPDT
Coil current type:	DC
Insulation breakdown voltage:	4000V
