HF41F/048-Z subminiature power relay

Symbol Micros: P HF41f048-z

85185

P HF41f048-z

Contractor Symbol:

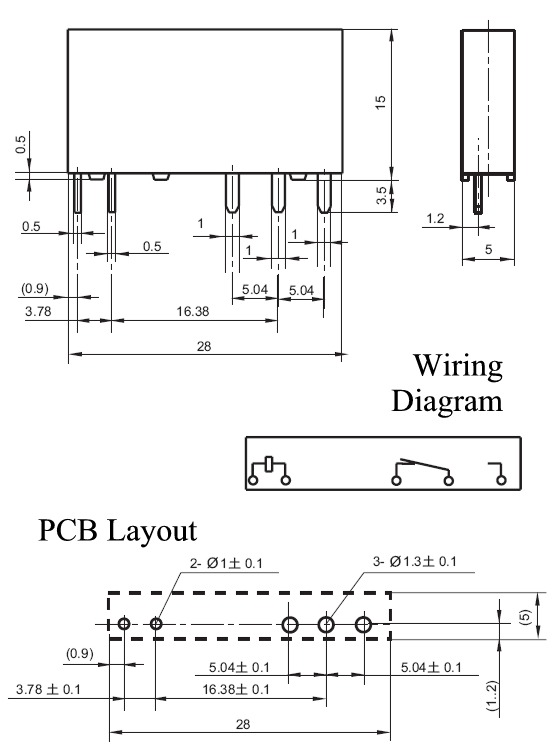

Case : Rys.HF41F.1z

Technical drawing Add to favourites

6A; 48V; SPDT; coil power 170mW; 28,0 x 5,0 x 15,0mm PCB vertical; contact material AgNi

Parameters

Coil voltage (V):	48V
Contact current:	6A
Type:	SPDT
Coil current type:	DC
Insulation breakdown voltage:	4000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	48V
Contact current:	6A
Type:	SPDT
Coil current type:	DC
Insulation breakdown voltage:	4000V
