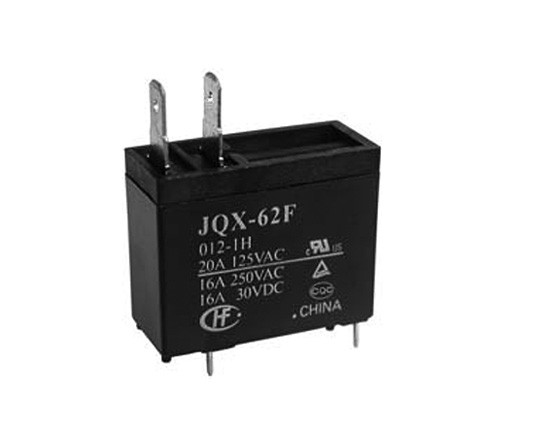

HF62F/012-1HF (JQX-62F) power relay

Symbol Micros: P HF62f012-1hf

28980

P HF62f012-1hf

Contractor Symbol:

Case : Rys.HF62F.qc

Datasheet

Technical drawing Add to favourites

20A; 12V; SPST-NO; coil power 540mW 29.0 x 24.2 x 12.6mm PCB+QC; equivalent: G5J

Parameters

Coil current type:	DC
Coil voltage (V):	12V
Contact current:	20A
Insulation breakdown voltage:	5000V
Type:	SPST-NO

All parameters

Manufacturer:: Hongfa Manufacturer part number: HF62F/012-1HF RoHS Case style: Rys.HF62F.qc Datasheet

In stock:

13 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,4934	1,1920	1,0204	0,9160	0,8789

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
50/500 Quantity (multiple: 1)

- +

• Parameters

Coil current type:	DC
Coil voltage (V):	12V
Contact current:	20A
Insulation breakdown voltage:	5000V
Type:	SPST-NO
