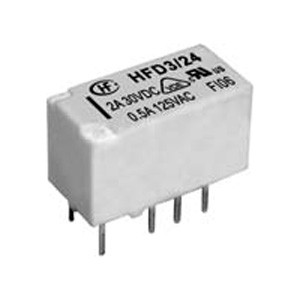

HFD3/012    signal relay monostable

Symbol Micros: P HFD3012

27966

P HFD3012

Contractor Symbol:

Case : Rys.HFD3.l1

Datasheet

Technical drawing Add to favourites

2A; 12V; DPDT; coil power 140mW; 15,0 x 7,5 x 9,0mm PCB

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	140mW

All parameters

Manufacturer:: Hongfa Manufacturer part number: HFD3/12 RoHS Case style: Rys.HFD3.l1 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	40+	200+	400+
Net price (EUR)	1,5118	1,0588	0,8569	0,8076	0,7958

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: Hongfa Manufacturer part number: HFD3/12 RoHS Case style: Rys.HFD3.l1 Datasheet

In stock:

175 pcs.

Quantity of pcs.	1+	5+	40+	200+	400+
Net price (EUR)	1,5118	1,0588	0,8569	0,8076	0,7958

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	140mW
Mounting:	PCB
Manufacturer:	Hongfa
Dimensions:	15,0 x 7,5 x 9,0mm
Operating temperature (range):	-40°C ~ 85°C
