HFKP/024-1H4T automotive relay

Symbol Micros: P HFKp024-1h4t

76330

P HFKp024-1h4t

Contractor Symbol:

Case : Rys.HFKP.1h4

Datasheet

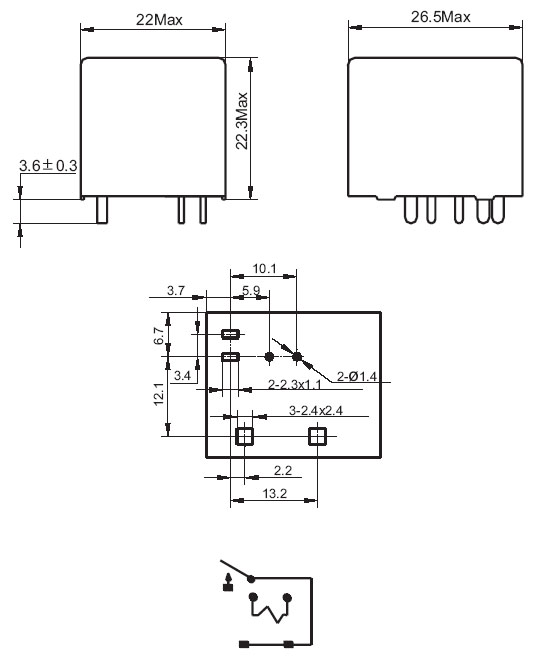

Technical drawing Add to favourites

45A; 24V; SPST; coil voltage 1,6W; 22 x 22,3 x 26,5mm PCB;

Parameters

Contacts configuration:	SPST
Coil voltage (V):	24V
Contact current:	45A
Contact voltage:	75VDC
Coil resistance:	362Ohm
Coil power:	1,6W
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPST
Coil voltage (V):	24V
Contact current:	45A
Contact voltage:	75VDC
Coil resistance:	362Ohm
Coil power:	1,6W
Mounting:	PCB
Manufacturer:	Hongfa
Dimensions:	22 x 22,3 x 26,5mm
Operating temperature (range):	-40°C ~ 125°C
