JS-6N-K

Symbol Micros: P JS6N-K

120190

P JS6N-K

Contractor Symbol:

Case : Rys.JS

Datasheet

Technical drawing Add to favourites

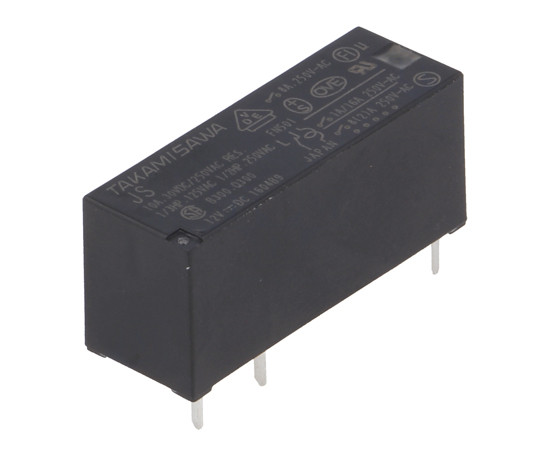

Power Relay 6VDC 10A SPDT(29x10x12.5)mm THT

Parameters

Coil voltage (V):	6V
Contacts configuration:	SPDT
Contact voltage:	400VAC/150VDC
Dimensions:	29x10x12,5mm
Manufacturer:	Fujitsu
Mounting:	THT
Operating temperature (range):	-40°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	6V
Contacts configuration:	SPDT
Contact voltage:	400VAC/150VDC
Dimensions:	29x10x12,5mm
Manufacturer:	Fujitsu
Mounting:	THT
Operating temperature (range):	-40°C ~ 85°C
