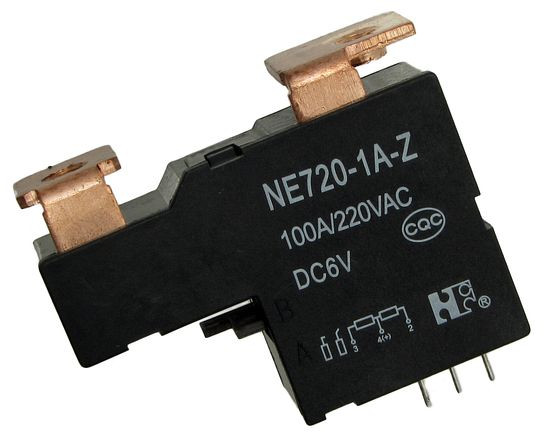

NE720AZ 6VDC D  power relay

Symbol Micros: P NE720AZ-06d

29462

P NE720AZ-06d

Contractor Symbol:

Case : Rys.NE720

Datasheet

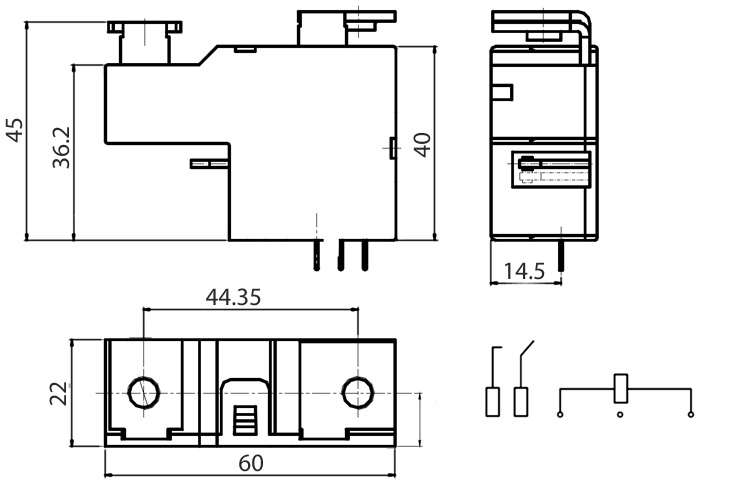

Technical drawing Add to favourites

100A; 5V; SPST-NO; coil power: 2 coils 4,5W; 60,0 x 22,0 x 40,0mm equivalent: GRUNER 720, JE22

Parameters

Type:	SPST-NO
Coil current type:	DC
Coil voltage (V):	5V
Contact current:	100A
Insulation breakdown voltage:	4000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type:	SPST-NO
Coil current type:	DC
Coil voltage (V):	5V
Contact current:	100A
Insulation breakdown voltage:	4000V
