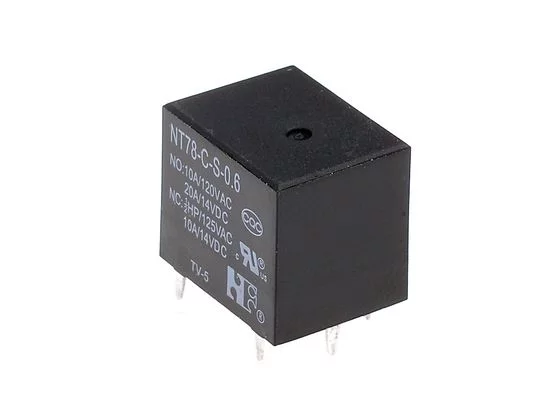

NT78-CS10 24VDC power relay

Symbol Micros: P NT78-1CS10-24

27296

P NT78-1CS10-24

Contractor Symbol:

Case : Rys.NT78

Datasheet

Technical drawing Add to favourites

10A; 24V; SPDT; coil power 600mW; 15,7 x 12,3 x 14mm PCB

Parameters

Type:	SPDT
Coil current type:	DC
Coil voltage (V):	24V
Contact current:	10A

All parameters

Manufacturer:: Forward Relays Manufacturer part number: NT78CS10DC24V0.6 RoHS Case style: Rys.NT78 Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	5+	25+	125+	500+
Net price (EUR)	0,9312	0,6192	0,5019	0,4574	0,4433

Add inquiry (RFQ)

Packaging:
25/125/1000 Quantity (multiple: 1)

- +

• Parameters

Type:	SPDT
Coil current type:	DC
Coil voltage (V):	24V
Contact current:	10A
