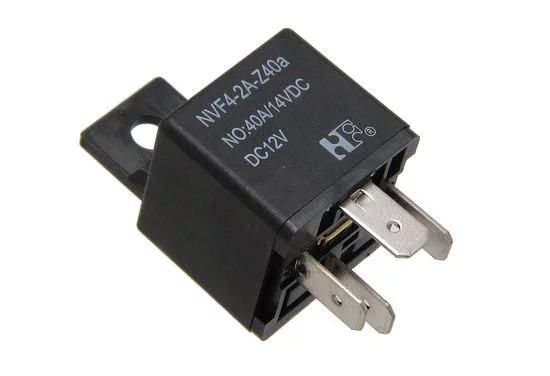

NFV4-2AZ40a 12VDC automotive relay

Symbol Micros: P NVF4-2AZ40a-12

41802

P NVF4-2AZ40a-12

Contractor Symbol:

Case : Rys.NVF4-2A

Datasheet

Add to favourites

40A; 12V; SPST-NO; coil power 1,6W; 26,5 x 26,5 x 24,5(+16)mm

Parameters

Contacts configuration:	SPST-NO
Coil voltage (V):	12V
Contact current:	40A
Contact voltage:	75VDC
Coil resistance:	90Ohm
Coil power:	1,6W
Manufacturer:	NFR

All parameters

Manufacturer:: Forward Relays Manufacturer part number: NVF4-2AZ40a1DC12V1.6 RoHS Case style: Rys.NVF4-2A Datasheet

In stock:

195 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,6313	1,1424	0,9708	0,8862	0,8580

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPST-NO
Coil voltage (V):	12V
Contact current:	40A
Contact voltage:	75VDC
Coil resistance:	90Ohm
Coil power:	1,6W
Manufacturer:	NFR
Dimensions:	26,5 x 26,5 x 24,5(+16)mm
Operating temperature (range):	-40°C ~ 125°C
