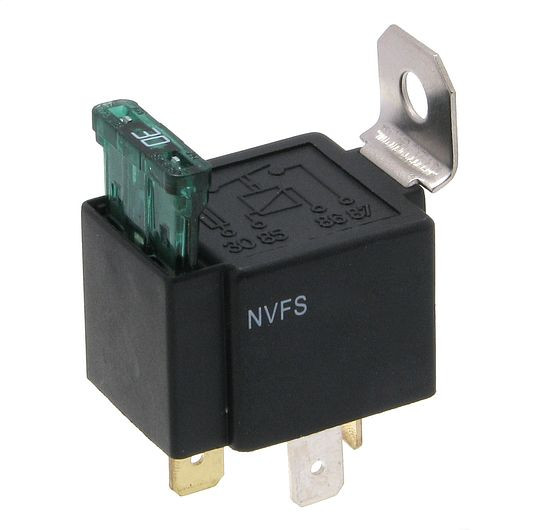

NVFS-A30/012 automotive relay

Symbol Micros: P NVFS-A30/012

53273

P NVFS-A30/012

Contractor Symbol:

Case : Rys.NVFS

Datasheet

Add to favourites

30A; 12V; SPST-NO; coil power 1,8W; 36,6 x 25,2 x 21mm PCB

Parameters

Coil power:	1,8W
Coil resistance:	80Ohm
Coil voltage (V):	12V
Contact current:	30A
Contacts configuration:	SPST-NO
Contact voltage:	75VDC
Dimensions:	36,6 x 25,2 x 21mm

All parameters

Manufacturer:: Forward Relays Manufacturer part number: NVFS A30DC12V RoHS Case style: Rys.NVFS Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,8163	1,3460	1,1769	1,0935	1,0680

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-12-30

Quantity of pcs.: 200





Add inquiry (RFQ)

Item in delivery

Estimated date:
2027-01-30

Quantity of pcs.: 500

• Parameters

Coil power:	1,8W
Coil resistance:	80Ohm
Coil voltage (V):	12V
Contact current:	30A
Contacts configuration:	SPST-NO
Contact voltage:	75VDC
Dimensions:	36,6 x 25,2 x 21mm
Manufacturer:	NFR
Mounting:	PCB
Operating temperature (range):	-40°C ~ 105°C
