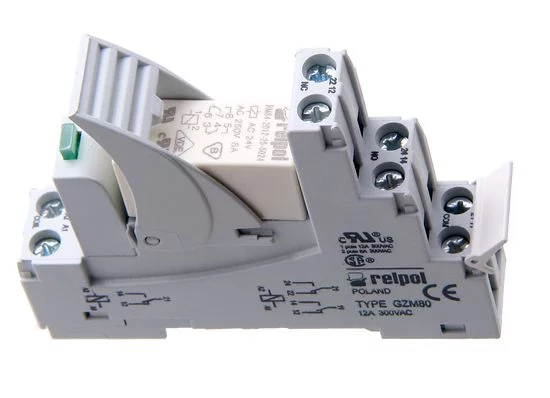

PI84-024DC-00LD  interface relay

Symbol Micros: P PI84/024dc00LD

41316

P PI84/024dc00LD

Contractor Symbol:

Case : Rys.PI84-GZM80

Datasheet

Technical drawing Add to favourites

8A; 24V; DPDT; coil power 400mW consists of RM84, socket GZM80 retractor clip, protecting module type M ver. LD

Parameters

Type:	DPDT
Coil current type:	DC
Coil voltage (V):	24V
Contact current:	8A
Insulation breakdown voltage:	5000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type:	DPDT
Coil current type:	DC
Coil voltage (V):	24V
Contact current:	8A
Insulation breakdown voltage:	5000V
