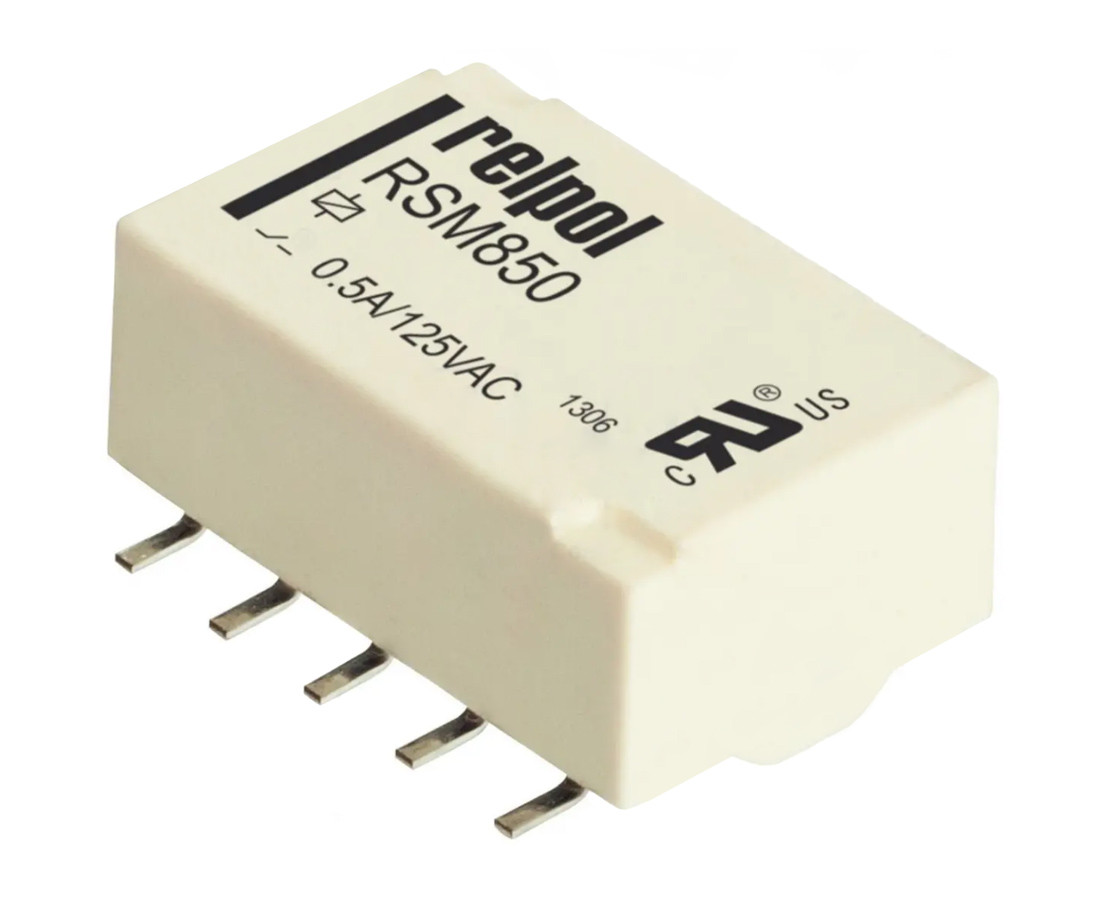

RSM850-6112-8M-1012 subminiature signal relay, monostable

Symbol Micros: P RSM850p012m

296596

P RSM850p012m

Contractor Symbol:

Case : Rys.RSM850 smt

Datasheet

Add to favourites

2A; 12V; DPDT; 140mW; 14,3 x 9,3 x 5,4mm; AgPd/Au; IP64 SMD

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/30VDC
Coil power:	140mW

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/30VDC
Coil power:	140mW
Mounting:	SMD
Manufacturer:	RELPOL, ZETTLER
Dimensions:	14,3 x 9,3 x 6,6mm
Operating temperature (range):	-40°C ~ 85°C
