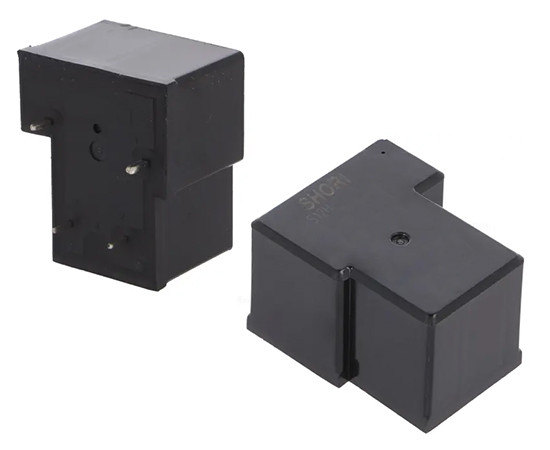

S12H-PCS-24 SHORI

Symbol Micros: P S12H-PCS-24V

337819

P S12H-PCS-24V

Contractor Symbol:

Case : S12H-PCS

Datasheet

Add to favourites

40A; 24VDC; SPDT; 0,93W; 19,5x26,8x31,9mm contacts Ag; PCB

Parameters

AC contact current:	40A
Coil power:	0,93W
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
Contacts configuration:	SPDT
DC contact current:	40A
Dimensions:	19,5x26,8x31,9mm

All parameters

Manufacturer:: SHORI Manufacturer part number: S12H-PCS-24 RoHS Case style: S12H-PCS Datasheet

In stock:

67 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,7079	1,3617	1,1655	1,0478	1,0040

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

AC contact current:	40A
Coil power:	0,93W
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
Contacts configuration:	SPDT
DC contact current:	40A
Dimensions:	19,5x26,8x31,9mm
Manufacturer:	SHORI
Mounting:	PCB
Operating temperature (range):	-30°C ~ 85°C
