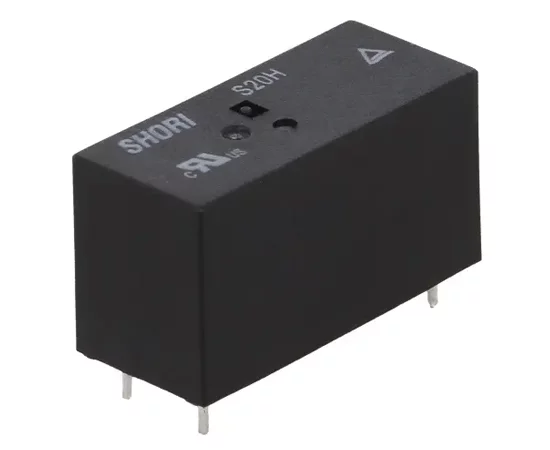

S20H-12B-1CS SHORI

Symbol Micros: P S20H-12B-1CS

337825

P S20H-12B-1CS

Contractor Symbol:

Case : S20H-CS

Datasheet

Add to favourites

12A; 12VDC; SPDT; 0,4W; 12,7x15,7x29mm contacts Ag; PCB

Parameters

AC contact current:	12A
Coil power:	0,4W
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	SPDT
DC contact current:	12A
Dimensions:	12,7x15,7x29mm

All parameters

Manufacturer:: SHORI Manufacturer part number: S20H-12B-1CS RoHS Case style: S20H-CS Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	1,5648	1,2417	1,0571	0,9694	0,9209

Add to comparison tool Add inquiry (RFQ)

Packaging:
10/100 Quantity (multiple: 1)

- +

• Parameters

AC contact current:	12A
Coil power:	0,4W
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	SPDT
DC contact current:	12A
Dimensions:	12,7x15,7x29mm
Manufacturer:	SHORI
Mounting:	PCB
Operating temperature (range):	-40°C ~ 85°C
