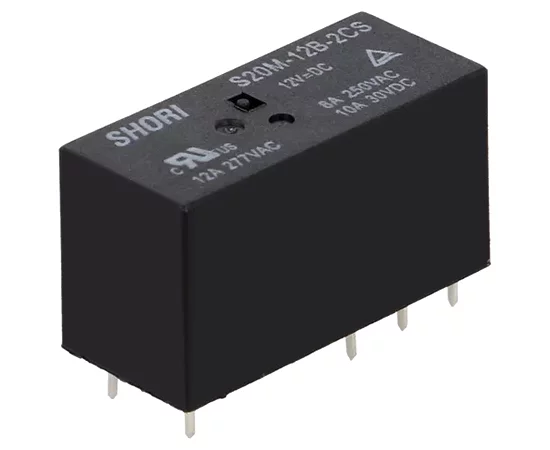

S20M-12B-2CS SHORI

Symbol Micros: P S20M-12B-2CS

337827

P S20M-12B-2CS

Contractor Symbol:

Case : S20M-CS

Datasheet

Add to favourites

10A; 12VDC; DPDT; 0,4W; 12,7x15,7x29mm contacts Ag; PCB

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	10A
DC contact current:	10A
Coil power:	0,4W
Mounting:	PCB

All parameters

Manufacturer:: SHORI Manufacturer part number: S20M-12B-2CS RoHS Case style: S20M-CS Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	1,8288	1,5259	1,3499	1,2677	1,2184

Add to comparison tool Add inquiry (RFQ)

Packaging:
10/100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	10A
DC contact current:	10A
Coil power:	0,4W
Mounting:	PCB
Manufacturer:	SHORI
Dimensions:	12,7x15,7x29mm
Operating temperature (range):	-40°C ~ 85°C
