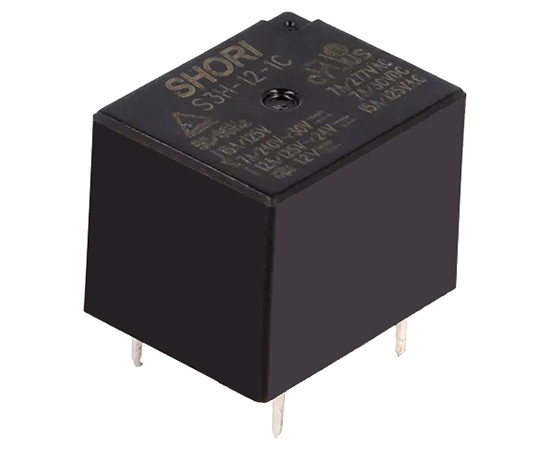

S3H-12-1C SHORI

Symbol Micros: P S3H-12-1C

501975

P S3H-12-1C

Contractor Symbol:

Case : Rys.S3H-12-1C SHORI

Datasheet

Add to favourites

7A/30V DC; 7A/277V AC; 12VDC; SPDT; 0,36W; 19,6x15,6x15mm contacts Ag; PCB

Parameters

AC contact current:	7A
Coil power:	0,36W
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	SPDT
DC contact current:	7A
Dimensions:	19,6x15,6x15mm

All parameters

Manufacturer:: SHORI Manufacturer part number: S3H-12-1C RoHS Case style: Rys.S3H-12-1C SHORI Datasheet

In stock:

200 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,1748	0,8239	0,6993	0,6393	0,6185

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

AC contact current:	7A
Coil power:	0,36W
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	SPDT
DC contact current:	7A
Dimensions:	19,6x15,6x15mm
Manufacturer:	SHORI
Mounting:	PCB
Operating temperature (range):	-30°C ~ 85°C
