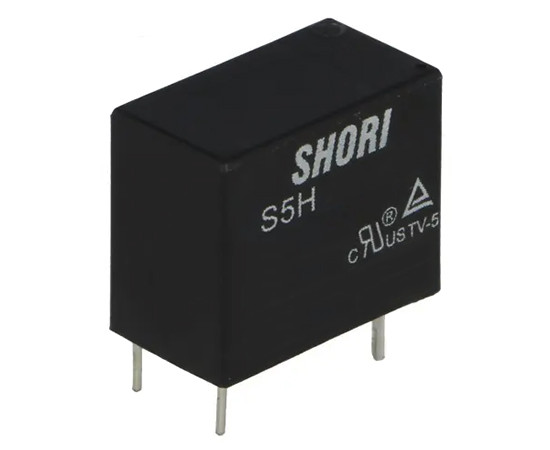

S5H-12-1AS SHORI

Symbol Micros: P S5H-12V-1AS

337844

P S5H-12V-1AS

Contractor Symbol:

Case : S5H-A

Datasheet

Add to favourites

8A; 12VDC; SPST-NO; 18,8x15,6x10,4mm contacts Ag; THT

Parameters

AC contact current:	8A
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	SPST-NO
DC contact current:	8A
Dimensions:	18,8x15,6x10,4mm
Manufacturer:	SHORI

All parameters

Manufacturer:: SHORI Manufacturer part number: S5H-12-1AS RoHS Case style: S5H-A Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,8735	0,5800	0,4807	0,4344	0,4160

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

AC contact current:	8A
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	SPST-NO
DC contact current:	8A
Dimensions:	18,8x15,6x10,4mm
Manufacturer:	SHORI
Mounting:	THT
Operating temperature (range):	-40°C ~ 70°C
