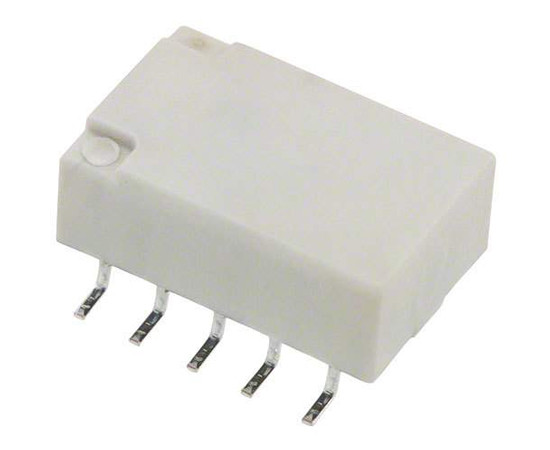

TQ2SA-5V monostable SMD relay

Symbol Micros: P TQ2SA-5V

117670

P TQ2SA-5V

Contractor Symbol:

Case : Rys.TQ2SA

Datasheet

Technical drawing Add to favourites

1A; 5V; 14 x 5 x 9mm; monostable SMD PCB

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	0,5A
DC contact current:	1A
Contact voltage:	max. 110V DC, max. 125V AC
Coil power:	140mW

All parameters

Manufacturer:: Panasonic Manufacturer part number: TQ2SA-5V Case style: Rys.TQ2SA

External warehouse:

250 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,3452

Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	0,5A
DC contact current:	1A
Contact voltage:	max. 110V DC, max. 125V AC
Coil power:	140mW
Mounting:	PCB
Manufacturer:	PANASONIC
Dimensions:	14x9x5,6mm
Operating temperature (range):	-40°C ~ 85°C
