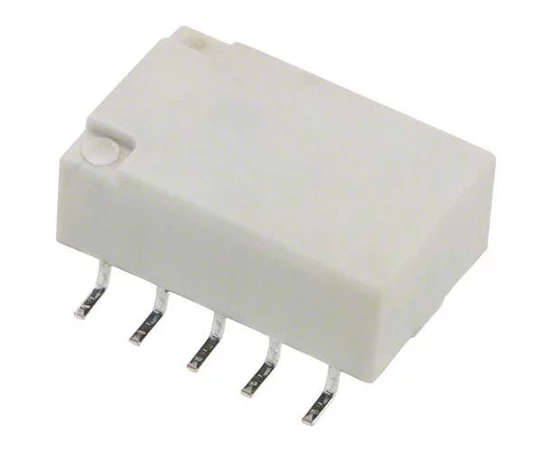

TQ2SA5ULCSAJ Panasonic

Symbol Micros: P TQ2SA5ULCSAJ

138339

P TQ2SA5ULCSAJ

Contractor Symbol:

Case : Rys.TQ2SA

Datasheet

Technical drawing Add to favourites

DPDT 2A 5VDC 178Ohm Surface Mount PCB

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	1A
DC contact current:	1A
Contact voltage:	125VAC/110VDC
Mounting:	PCB

All parameters

Manufacturer:: Panasonic Manufacturer part number: TQ2SA5ULCSAJ Case style: Rys.TQ2SA

External warehouse:

8550 pcs.

Quantity of pcs.	1000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,0052

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	1A
DC contact current:	1A
Contact voltage:	125VAC/110VDC
Mounting:	PCB
Manufacturer:	PANASONIC
Operating temperature (range):	-40°C ~ 70°C
