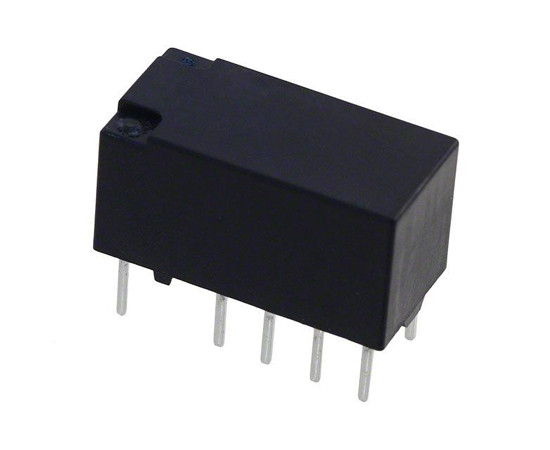

TX2-12V signal relay

Symbol Micros: P TX2-12V

111413

P TX2-12V

Contractor Symbol:

Case : Rys.TX2

Datasheet

Technical drawing Add to favourites

2A; 12VDC; DPDT; 140mW; 15 x 7,4 x 8,2mm Through Hole

Parameters

AC contact current:	2A
Coil power:	140mW
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	DPDT
Contact voltage:	220VDC
DC contact current:	2A

All parameters

Manufacturer:: Panasonic Manufacturer part number: TX2-12V Case style: Rys.TX2

External warehouse:

1920 pcs.

Quantity of pcs.	10+ (Please wait for the order confirmation)
Net price (EUR)	0,9189

Add to comparison tool Add inquiry (RFQ)

Packaging:
10

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

AC contact current:	2A
Coil power:	140mW
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
Contacts configuration:	DPDT
Contact voltage:	220VDC
DC contact current:	2A
Dimensions:	15 x 7,4 x 8,2mm
Manufacturer:	PANASONIC
Mounting:	THT
Operating temperature (range):	-40°C ~ 85°C
