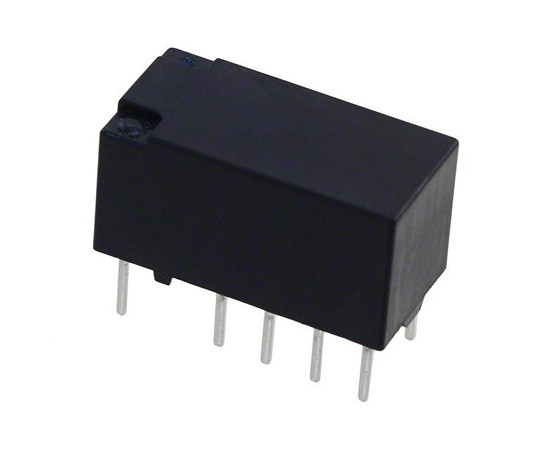

TX2-24V signal relay

Symbol Micros: P TX2-24V

111414

P TX2-24V

Contractor Symbol:

Case : Rys.TX2

Datasheet

Technical drawing Add to favourites

2A; 24VDC; DPDT; 140mW; 15 x 7,4 x 8,2mm Through Hole

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	220VDC
Coil power:	140mW

All parameters

Manufacturer:: Panasonic Manufacturer part number: TX2-24V Case style: Rys.TX2

External warehouse:

3240 pcs.

Quantity of pcs.	10+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,0529

Add inquiry (RFQ)

Packaging:
10

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Panasonic Manufacturer part number: TX2-24V Case style: Rys.TX2

External warehouse:

62239 pcs.

Quantity of pcs.	120+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,9307

Add to comparison tool Add inquiry (RFQ)

Packaging:
40

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	220VDC
Coil power:	140mW
Mounting:	THT
Manufacturer:	PANASONIC
Dimensions:	15 x 7,4 x 8,2mm
Operating temperature (range):	-40°C ~ 85°C
